UNIQOPTER

Uniqopter is creating a sustainable hybrid eVTOL air ambulance, police and fire service aircraft. The platform is also well suited for cargo and air taxi businesses.


Uniqopter model 3D view

SPECIFICATIONS

90 minute flight mission with 30 minute reserve for 1 or 2 pilots, two medics, and 1 or 2 patients


  • Flight time: 90 minutes + 30 min reserve
  • Speed: 125 knots (232 Km/h, 144 Mph)
  • Useful weight (payload): 1530 lb
  • Weight of the medical equipment: 500 lb
  • Total weight: 7000 lb
  • Number of medics: 2
  • Number of pilots: 1 or 2
  • Number of patients: 1 or 2, up to 400 lb total

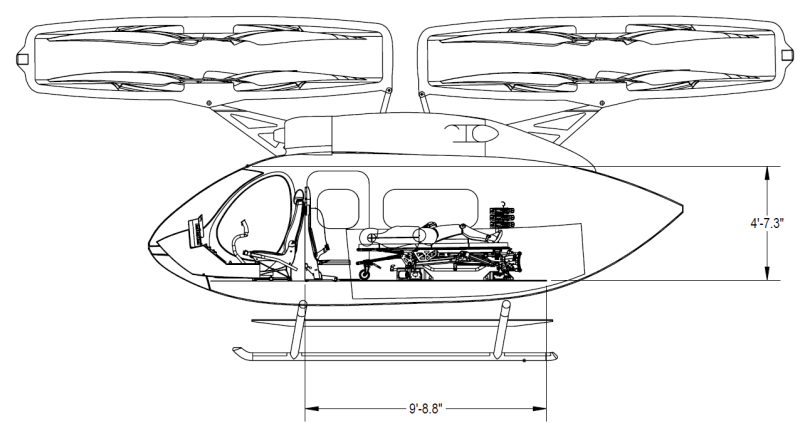

Uniqopter eVTOL drawing side view with dimensions

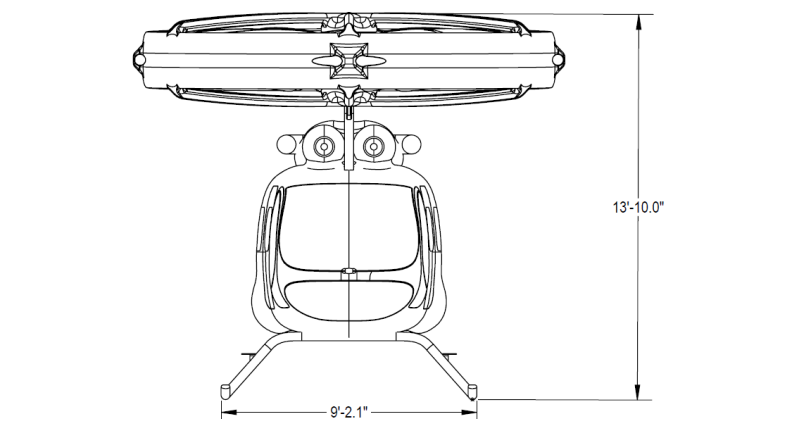

Uniqopter eVTOL drawing front view with dimensions
Uniqopter eVTOL drawing top view with dimensions

DESIGN CHARACTERISTICS

  • TANDEM-ROTOR CONFIGURATION

    The tandem-rotor configuration is one of the most successful helicopter designs created in the late 1940s. Since 1962 it was implemented for the CH-47 Chinook helicopter, which is still in production.

  • ZERO COMPUTER AUTOMATION

    Uniqopter does not require a computerized flight control system. It utilizes a traditional mechanical and manually operated flight control system. This simplifies the flight control system and makes the certification process simpler, faster and less expensive.

  • IMPULSE NOISE REDUCTION RINGS

    Each of the two horizontal rings have 3 functions: Impulse noise reduction significantly reducing the noise generated and projected in the horizontal direction from the propellers. Safety: reduce the accidental contact of people, animals or other objects with the propellers. Performance improvement: creation of the ducted fans.

  • REACTION CONTROL SYSTEM (RCS)

    Similarly to the 1981 McDonnell Douglas AV-8B Harrier II, Uniqopter creates RCS through its 6 manually controlled air jet valves. These valves are installed on the external surface of the safety rings to control the front/back and left/right movements of the aircraft. They also allow the yaw-on-the-spot (‘turn in the air’) maneuver.

  • SMALLER LANDING ZONE FOOTPRINT

    The smaller main blade diameter and the absence of the tail allow Uniqopter land on a parking lot taking only 4 parking spots.

  • INCREASED GEOGRAPHICAL AREA OF THE BUSINESS OPERATION

    The Uniqopter's smaller landing zone footprint and its noise reduction capability, greatly expanded areas of operations are possible.

MEDICAL SOLUTIONS

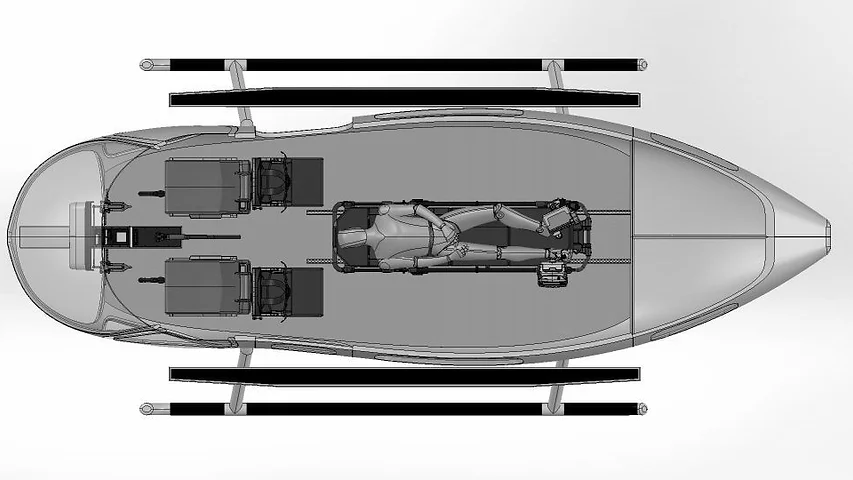

Uniqopter configuration for air ambulance - one patient

A common complaint of air ambulance operators is the size of the patient access doors. Uniqopter has addressed this issue with a wide backdoor access that eases the handling of standard or powered patient stretchers.


A spacious interior allows for convenient access to patients by medical personnel.

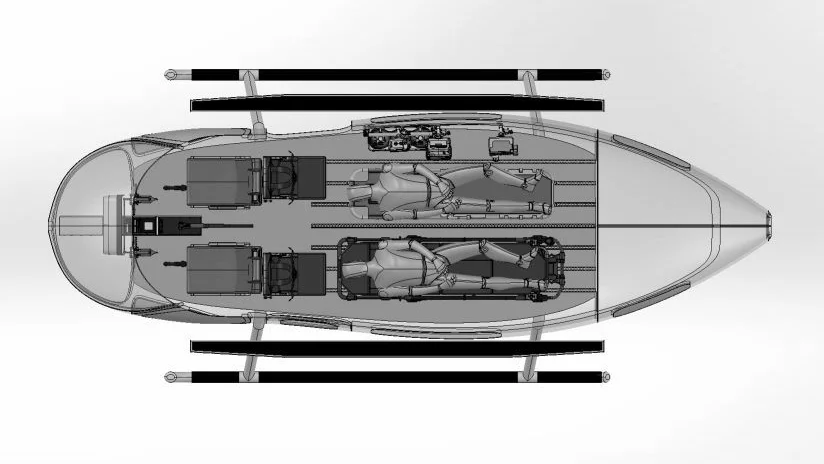

Uniqopter configuration for air ambulance - two patients

Two patients can be loaded side by side on a stretcher and a spine board.


There is a reinforced floor support for a bariatric stretcher and for the medical equipment permanently mounted on a stretcher.

The medical equipment is permanently mounted on a stretcher or relocated to the wall mounts.

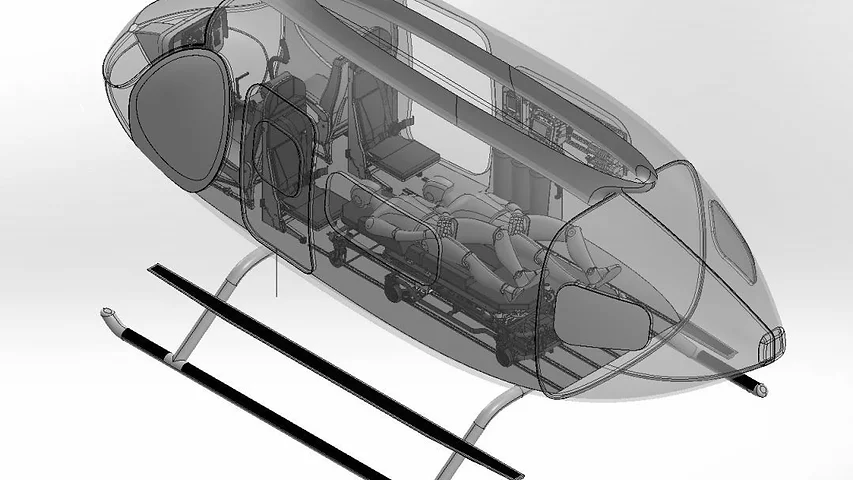

Uniqopter configuration for air ambulance - two patients, 3D view

The unique construction of the cabin floor prevents body fluids (blood, saliva, mucus and urine) from weeping to the other parts of the airframe.


There is a commercially available wide selection of aircraft certified patient monitors, ventilators, pumps, gassed or liquid oxygen.

MEDICAL SOLUTIONS

Uniqopter configuration for air ambulance - one patient

A common complaint of air ambulance operators is the size of the patient access doors. Uniqopter has addressed this issue with a wide backdoor access that eases the handling of standard or powered patient stretchers.


A spacious interior allows for convenient access to patients by medical personnel.



Uniqopter configuration for air ambulance - two patients

Two patients can be loaded side by side on a stretcher and a spine board.


There is a reinforced floor support for a bariatric stretcher and for the medical equipment permanently mounted on a stretcher.

The medical equipment is permanently mounted on a stretcher or relocated to the wall mounts.



Uniqopter configuration for air ambulance - two patients, 3D view

The unique construction of the cabin floor prevents body fluids (blood, saliva, mucus and urine) from weeping to the other parts of the airframe.


There is a commercially available wide selection of aircraft certified patient monitors, ventilators, pumps, gassed or liquid oxygen.

MEDICAL SOLUTIONS





A common complaint of air ambulance operators is the size of the patient access doors. Uniqopter has addressed this issue with a wide backdoor access that eases the handling of standard or powered patient stretchers.


A spacious interior allows for convenient access to patients by medical personnel.

Uniqopter configuration for air ambulance - one patient


Uniqopter configuration for air ambulance - two patients





Two patients can be loaded side by side on a stretcher and a spine board.


There is a reinforced floor support for a bariatric stretcher and for the medical equipment permanently mounted on a stretcher.

The medical equipment is permanently mounted on a stretcher or relocated to the wall mounts.







The unique construction of the cabin floor prevents body fluids (blood, saliva, mucus and urine) from weeping to the other parts of the airframe.


There is a commercially available wide selection of aircraft certified patient monitors, ventilators, pumps, gassed or liquid oxygen.

Uniqopter configuration for air ambulance - two patients, 3D view

ABOUT US

Uniqopter is a Canadian startup that is planning to design, manufacture and sell a hybrid eVTOL aircraft.



Eugene Pik photo

EUGENE PIK

CEO
Eugene Pik studied Robotics at the Belarusian National Technical University and Software Engineering at the Open University of Israel. Eugene co-founded several startups: Million Artists raised funds for Hospital for Sick Children, MSF, NOCA, and CFW. Non-profit New Vision Fundraising Services raised funds for Canadian cancer research. Easy Devs is a bartering app in cooperation with Amazon. Medcare Medical Devices Canada, a regulatory consulting firm for Health Canada and FDA regulatory approvals. Uniqopter, a hybrid eVTOL for Air Ambulance, Fire, Police, Air Taxi and cargo.
Richard Abbott photo

RICHARD ABBOTT

CTO
Richard Abbott has 30 years of experience in military and civil aerospace product development. He has consulted for and advised many established and emerging companies and specializes in clean sheet design, design for manufacture and certification. He is the author of "Analysis and Design of Composite and Metallic Flight Vehicle Structures" and hundreds of analysis tools that are used globally. Richard was an associate professor of engineering at UCCI and is an advisor to the College of Aerospace Science Engineering at Tuskegee University.
Taras Lyssenko photo

TARAS LYSSENKO

Director, Government Relations and Business Development
Taras Lyssenko works in Government Relations and Business Development promoting the advancement of scientific technologies that bring about better quality of and protect life within the realm of Defense, Energy, Aviation, Medicine, and Homeland Security. At the present time he handles the role of Chief Business Development/Government Relations Officer for multiple aircraft corporations, primarily working U.S. and allied defense and homeland security applications

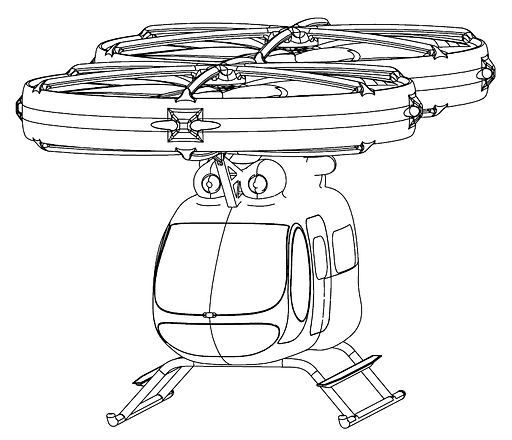

Uniqopter scetch 3D view

OPEN SOURCE HARDWARE AIRCRAFT

We intend to give the technology away as we develop it. We will post all our blueprints and development documentation online, under Open Source and Open Source Hardware licenses. This will be the first attempt to use Open Source information at such a scale.

We are planning to go further and make all of the company’s operational systems Open Source, including:

  • Engineering systems – document numbering, change and release control, configuration control
  • Work orders, warehousing, scheduling
  • Certification and compliance systems
  • Manufacturing process specifications
  • Human resource policies
  • Quality system

Every aircraft startup company has to develop all of these systems. They are all regarded as proprietary by each company and as such they are all guarded and kept confidential. And they are all very similar. These systems are so similar that almost all aircraft companies could adopt a single standard for these systems as a baseline and make small modifications in house to meet their own specific needs.

DESIGN CONSIDERATIONS

In order to gain an understanding of the ideal air ambulance aviation platform we conducted a series of interviews with Canadian and U.S. based operators and university researchers. Additionally we had valuable design input from Ferno-Aviation, one of the largest EMS solutions providers. Our novel eVTOL design is based on traditional technologies. These technologies will allow for an ease of development and certification. This allows Uniqopter to be faster to market and less expensive when compared to other eVTOL programs.

THE BUSINESS

Uniqopter has an unconventional eVTOL business case, based on existing markets that can be realistically identified. This approach has brought us to the conclusion that we cannot guarantee ROI in a reasonable time, or at all. Data from the General Aviation Manufacturers Association indicates there are about 500 helicopters in the Uniqopter's category sold per year, worldwide. Gaining a profitable market share would be a monumental task due to manufacturing economies of scale.

Even if a potential investor wishes, we will not sprinkle pixie dust on our market analysis and tell fairy tales about being able to sell thousands of aircraft per year. We know that works, because we have witnessed plenty of other eVTOL companies doing that, but not us.

CONTACT US

[email protected]

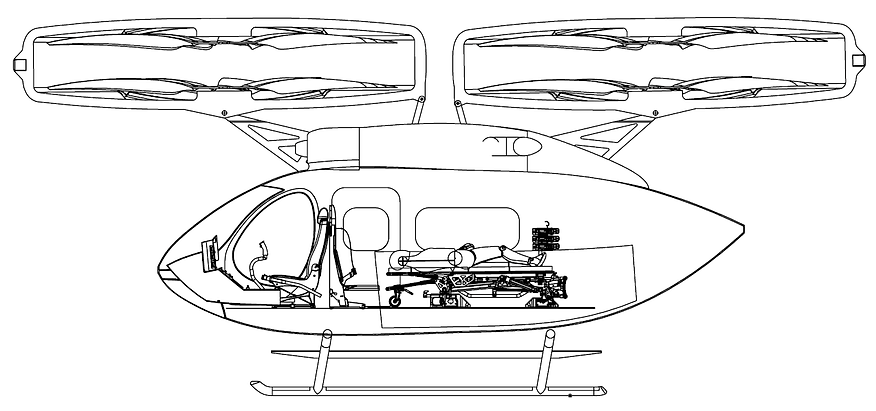

Uniqopter eVTOL drawing side view
